MU0079 Molybdenum Plate (Mo Plate)

Catalog No.	MU0079
Size	>4.7mm x W x L
Standard	ASTM B386
Density	9.8 - 10.2 g/cc
Material	Mo≥99.95% & TZM
Surface	Rolling surface, Grinding, Chemical cleaned
MSDS/SDS	Download MSDS/SDS

Molybdenum Plate (Mo Plate) from Stanford Advanced Materials (SAM) is a top-choice metal plate for specialized applications. Known for high-temperature stability, superior corrosion resistance, and excellent mechanical properties, it ensures reliable performance in demanding engineering projects. Choose SAM for a compact solution with outstanding performance and durability.

Related products: TZM Products, Mo-La Products, Mo Tube, Mo Sheet, Mo Wire, Mo Disc

INQUIRY

sc/1737363611-normal-molybdenum-plate.jpg

Description

Specification

Technical Data Sheet

Video

Molybdenum Plate Description

Molybdenum is gray-metallic and has the third-highest melting point of any element next to tungsten and tantalum. It is found in various oxidation states in minerals but does not occur naturally as a free metal. Molybdenum allows readily to form hard and stable carbides. For this reason, Molybdenum is frequently used for making steel alloys, high-strength alloys, and superalloys. Molybdenum compounds usually have a low solubility in water. Industrially, they are used in high-pressure and high-temperature applications such as pigments and catalysts.

The molybdenum Plate is made up of commercially pure molybdenum content. The material comprises more than 99.95% molybdenum. Our molybdenum plates are manufactured using extrusion, forge, rolling, and annealing processes. The surface can be supplied in a shiny, matte, satin, or as-rolled condition.

Molybdenum Plate Specification

Tck. (inch)	Max. Wd. (inch)	Max. Len. (inch)	Tck. Tlrnc. (inch)
0.090 - 0.200	30	114	+/- 0.008
0.200 - 0.250	24	84	+/- 2%
0.250 - 0.500	24	42	+/- 2%
>0.500	24	-	+/- 2%
Typical Dimensions
.250″ x 12″ x R/L	.375″ x 12″ x R/L	.500″ x 12″ x R/L	.625″ x 12″ x R/L
.750″ x 12″ x R/L	1.0″ x 12″ x R/L	1.125″ x 12″ x R/L	1.250″ x 12″ x R/L
1.375″ x 12″ x R/L	1.500″ x 12″ x R/L	1.750″ x 12″ x R/L	2.0″ x 12″ x R/L

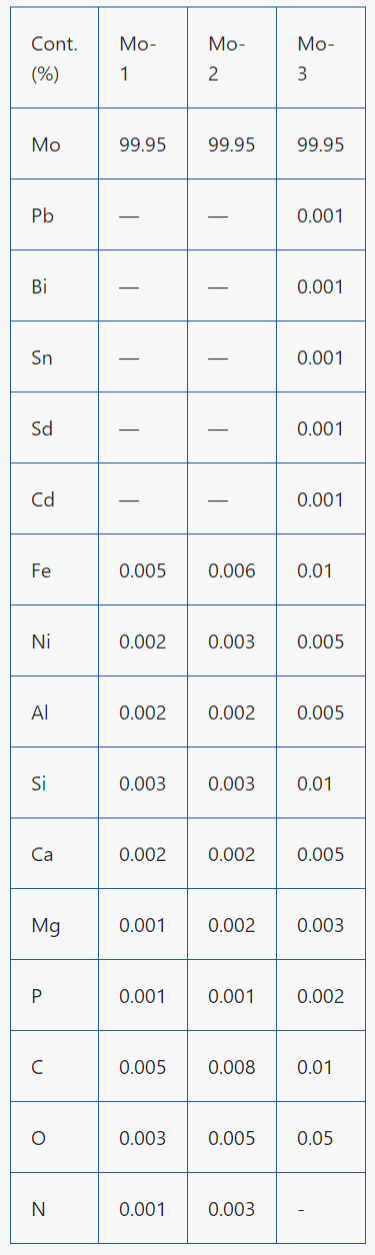

Chemical Composition (%)

Content	Mo	Fe	Ni	Al	Si	Ca	Mg	P	C	O	N	Other impurities
Mo-1	99.95	0.005	0.002	0.002	0.003	0.002	0.001	0.001	0.005	0.003	0.001	-
Mo-2	99.95	0.006	0.003	0.002	0.003	0.002	0.002	0.001	0.008	0.005	0.003	-
Mo-3	99.95	0.01	0.005	0.005	0.01	0.005	0.003	0.002	0.01	0.05	-	0.001

Molybdenum Plate Applications

1. High-temperature industry: Molybdenum Plates are used in a wide range of applications such as the manufacture of high-temperature equipment, vacuum furnaces, and electronic components, ensuring the reliability of the material in extreme temperature conditions.

2. Chemical industry: Thanks to its excellent corrosion resistance, the Molybdenum Plate is ideal for specialized equipment such as chemical vessels, pipelines, and reactors, meeting the stringent requirements of highly corrosive environments.

3. Aerospace: In the aerospace sector, the Molybdenum Plate is used to manufacture spacecraft components, ensuring material performance under extreme conditions.

Molybdenum Plate Packaging

Our Molybdenum plates are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
