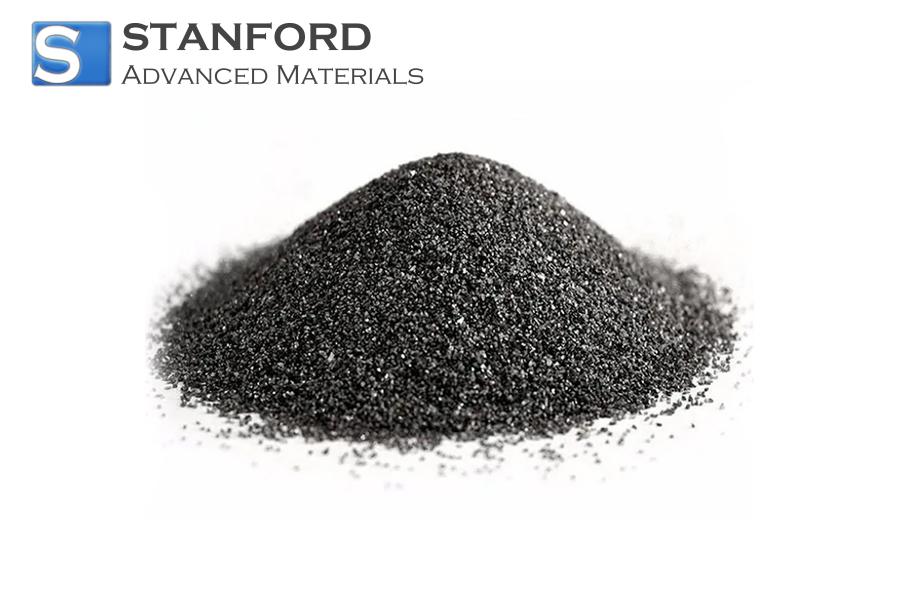

SM1060 Silicon Powder (Si Powder) (CAS No.7440-21-3)

Catalog No.	SM1060
CAS Number	7440-21-3
Appearance	Dark Gray Powder
Melting Point	1414 °C
Molecular Formula	Si
Molar mass	385.866 g/mol
Density (at R.T.)	2.329g/cc
Structure Feature	Crystalline

Stanford Advanced Materials (SAM) has been supplying high quality, ultra-high purity silicon powder for over 20 years. Various sizes are available upon request.

INQUIRY

Description

Specification

Technical Data Sheet

Silicon Powder Description

Silicon is a metalloid and carries the typical properties of both metals and nonmetals. It is extremely inert and insoluble in water and acids. However, it can be dissolved into silicates by hot alkaline lyes. Pure silicon forms dark gray, metallic, shiny crystals. Silicon also has excellent thermal conductivity, which – in pure silicon – is accompanied by extremely low electrical conductivity. Our silicon powder is produced using minimally sized grains and is useful in applications requiring high surface areas such as water treatment, fuel cell, and solar applications.

Silicon Powder Applications

Used in semiconductor technology.
High-purity silicon (> 99.99 percent) is used for computer microchips, transistors and solar cells.
Applied as a raw material in the manufacture of reaction-bonded silicon nitride (RBSN) and for the metal infiltration of high-purity silicon carbide (SiSiC)

Silicon Powder Specification

Item No.

Description

Purity

Lot Size

ME14P-3N

High Purity Silicon powder,

-325, -200, -100 mesh

Other sizes are available upon request.

99.9%

Fe<0.1%, typically Fe<0.05%

Please contact us for detailed specifications.

100kg

500kg

1000kg

ME14P-4N

High Purity Silicon powder,

-325, -200, -100 mesh

Other sizes are available upon request.

99.99%

Fe<0.001%, Zn<0.008%, Al<0.001%

Please contact us for detailed specifications.

100kg

500kg

1000kg

ME14P-5N

High Purity Silicon powder,

-325, -200, -100 mesh

Other sizes are available upon request.

99.999%

Fe<0.001%, Zn<0.008%, Al<0.001%

Please contact us for detailed specifications.

100kg

500kg

1000kg

We also provide silicon powder with a higher purity of 6N upon request.

Silicon Powder Applications

Silicon powder is sometimes used as an anode material or an additive in lithium-ion batteries to improve performance, specifically to increase energy density and extend battery life.
Crystalline silicon can be used in the production of LEDs and other optoelectronic devices. Silicon powder is used to create materials that allow for efficient light emission.
Silicon is also used in optical coatings and films that are applied to lenses and other optical components to enhance light transmission and reflection properties.

Silicon Powder Safety Packaing

Our silicon powder is carefully handled to prevent damage during storage and transportation and to preserve the quality of our product in its original condition.

packing packing

Silicon Powder Safety Information

Signal Word	Warning
Hazard Statements	H228
Hazard Codes	F
Precautionary Statements	P210-P240-P241-P280-P370 + P378
Flash Point	Not applicable
Risk Codes	11
Safety Statements	16-33-36
RTECS Number	VW0400000
Transport Information	UN 1346 4.1/PG 3
WGK Germany	2
GHS Pictograms
