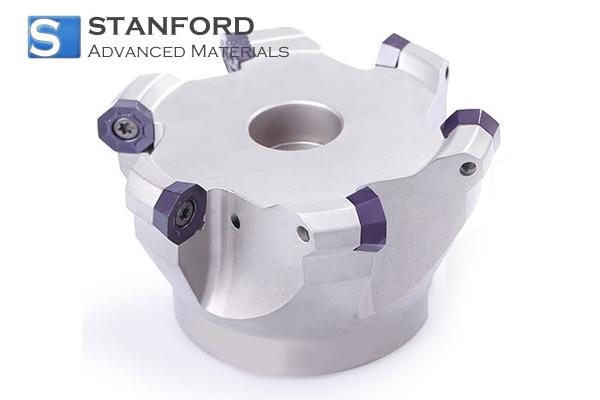

CUT3215 OD Multi-function Milling Cutter
| Catalog No. | CUT3215 |
| Type | Face Cutter |
| Coating Material | PVD, CVD |
| Work piece material | P, K, M, S |
OD Multi-function Milling Cutter features lightweight, high economy, multi-function, and good corrosion resistance and wear resistance. Stanford Advanced Materials (SAM) has rich experience in manufacturing and supplying high-quality cutting tools.
Related products: PCBN Turning Inserts, PCD Turning Inserts, Deep-hole Drilling Inserts
INQUIRY
Add to Inquiry List
Description
Specification
OD Multi-function Milling Cutter Description:
OD Multi-function Milling Cutter has a positive, economic one-side insert with 8 cutting edges. The sharp cutting makes cutting lightly. It has an extensive facing application range for steel and cast-iron roughing, semi-finishing, and finishing. Double rake angles make cutting gently and slightly. The shining nickel-plated cutter has well corrosion resistance and wear resistance.
OD Multi-function Milling Cutter Specifications:
AFM42-OD04
|
Designation |
Dimension(mm) |
Z |
Insert |
|||
|
D |
d1 |
L |
apmax |
|||
|
AFM42-032-Z03-M16R-OD04-C |
32 |
M16 |
43 |
3.5 |
3 |
OD..0404 |
|
Designation |
Dimension(mm) |
Z |
Insert |
|||
|
D |
d1 |
L |
apmax |
|||
|
AFM42-032-Z03-W32R-OD04-C |
32.0 |
32 |
120 |
3.5 |
3 |
OD..0404 |
|
Designation |
Dimension(mm) |
Z |
Insert |
|||
|
D |
d1 |
L |
apmax |
|||
|
AFM42-040-Z04-A16R-OD04-C |
40 |
16 |
40 |
3.5 |
4 |
OD..0404 |
|
AFM42-050-Z05-A16R-OD04-C |
50 |
16 |
40 |
3.5 |
5 |
|
|
AFM42-063-Z05-A22R-OD04-C |
63 |
22 |
40 |
3.5 |
5 |
|
|
AFM42-063-Z06-A22R-OD04-C |
63 |
22 |
40 |
3.5 |
6 |
|
|
AFM42-080-Z06-A27R-OD04-C |
80 |
27 |
50 |
3.5 |
6 |
|
|
AFM42-080-Z08-A27R-OD04-C |
80 |
27 |
50 |
3.5 |
8 |
|
|
AFM42-100-Z07-A32R-OD04-C |
100 |
32 |
50 |
3.5 |
7 |
|
|
AFM42-100-Z08-A32R-OD04-C |
100 |
32 |
50 |
3.5 |
8 |
|
|
AFM42-125-Z08-A40R-OD04-C |
125 |
40 |
63 |
3.5 |
8 |
|
|
AFM42-125-Z10-A40R-OD04-C |
125 |
40 |
63 |
3.5 |
10 |
|
AFM42-OD06
|
Designation |
Dimension(mm) |
Z |
Insert |
|||
|
D |
d1 |
L |
apmax |
|||
|
AFM42-050-Z04-A16R-OD06-C |
50.0 |
16 |
40 |
4.5 |
4 |
OD..0605 |
|
AFM42-063-Z05-A22R-OD06-C |
63.0 |
22 |
40 |
4.5 |
5 |
|
|
AFM42-080-Z05-A27R-OD06-C |
80.0 |
27 |
50 |
4.5 |
5 |
|
|
AFM42-080-Z06-A27R-OD06-C |
80.0 |
27 |
50 |
4.5 |
6 |
|
|
AFM42-100-Z06-A32R-OD06-C |
100.0 |
32 |
50 |
4.5 |
6 |
|
|
AFM42-100-Z07-A32R-OD06-C |
100.0 |
32 |
50 |
4.5 |
7 |
|
|
AFM42-125-Z07-A40R-OD06-C |
125.0 |
40 |
63 |
4.5 |
7 |
|
|
AFM42-125-Z08-A40R-OD06-C |
125.0 |
40 |
63 |
4.5 |
8 |
|
|
AFM42-160-Z10-A40R-OD06 |
160.0 |
40 |
63 |
4.5 |
10 |
|
OD Multi-function Milling Cutter Applications:
OD Multi-function Milling Cutter Packaging
Our OD Multi-function Milling Cutter is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
