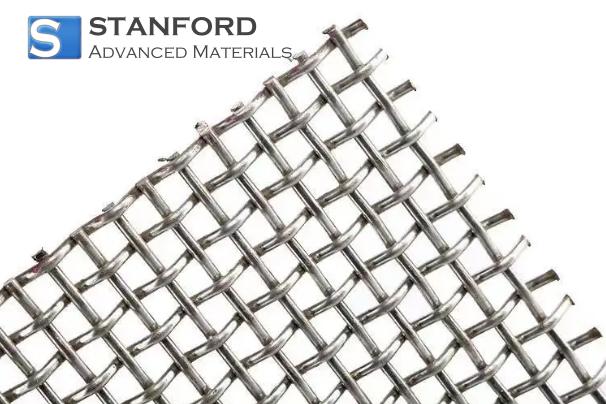

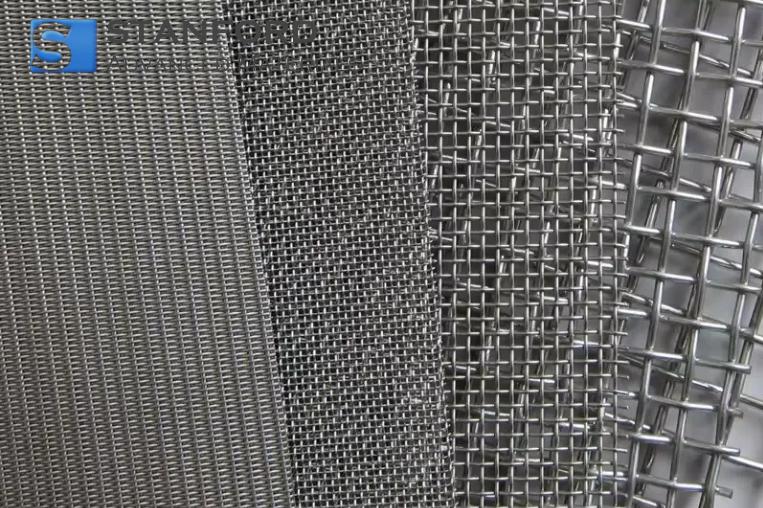

SV3441 Silver Mesh, Ag Mesh

Catalog No. SV3441
Material Silver
Mesh Size 10-150
Diameter 0.3x0.5, 0.6x1.2, 1x2, 1.5x3 mm
Thickness 0.04-3.5 mm
Shape Mesh

Silver Mesh has good ductility, and its conductivity and heat transfer are the highest among all metals. Stanford Advanced Materials (SAM) has rich experience in manufacturing and supplying high-quality Molybdenum Mesh.

Related products: Molybdenum Mesh, Inconel 625 Mesh

Silver Mesh Description

Silver mesh has good ductility, and its conductivity and heat transfer are the highest among all metals. It is used as a battery current collecting net, electrode net, and battery skeleton net.

Silver Mesh Specifications

Material

Silver

Wire Diameter (mm)

0.3x0.5, 0.6x1.2, 1x2, 1.5x3, etc.

Thickness (mm)

0.04-3.5

*Special specifications can be produced according to customer requirements, hole shape: regular rhombus, long rhombus.



Mesh

Dia. Of Mesh (mm)

Aperture (mm)

Maximum Width (m)

10

0.60

1.94

1.60

20

0.40

0.87

1.60

30

0.30

0.55

1.60

40

0.23

0.40

1.60

50

0.20

0.31

1.60

60

0.15

0.27

1.60

70

0.12

0.24

1.60

80

0.13

0.19

1.60

90

0.12

0.16

1.60

100

0.10

0.15

1.60

120

0.09

0.12

1.60

150

0.063

0.11

1.60

*Special specifications can be processed and customized.

Silver Mesh Applications

Used as a battery current collecting net, electrode net, and battery skeleton net.

Silver Mesh Packaging

Our Silver Mesh is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
